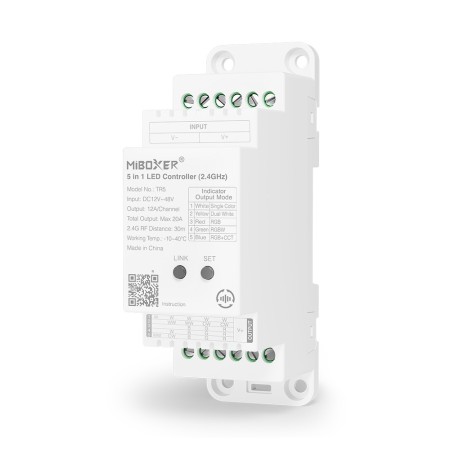

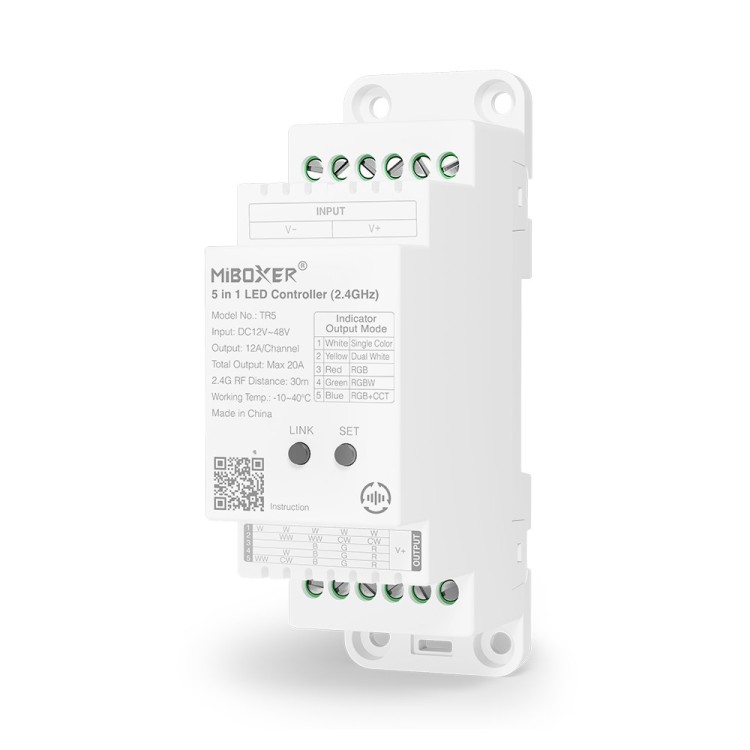

MiBoxer TR5 DIN Rail-Mounted 5-in-1 RGB / RGBW / RGB+CCT LED Controller 2.4GHz
The MiBoxer TR5 is a universal 5-in-1 LED controller designed for 35mm DIN rail mounting. It supports all popular LED strip types: RGB, RGBW, and RGB+CCT, providing full control over color, brightness, and color temperature.
Using 2.4GHz RF technology, the controller enables stable, wireless control using MiBoxer remotes and panels. When combined with an optional gateway, integration with smart apps is also possible.
Key Features:

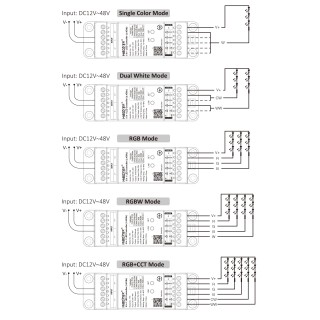

5-in-1 - Supports multiple LED modes:
MONO, CCT (Dual White), RGB, RGBW, RGB+CCT
35mm DIN rail mounting
RF 2.4GHz control
Brightness adjustment 0-100%
16 million RGB colors
Color temperature adjustment (CCT)
RGB saturation and color control
Built-in dynamic modes (18 effects)
Stable transmission and interference immunity
Technical Specifications:
Model: TR5
Type: 5-in-1 LED controller
Power supply voltage: DC 12-48V
Control: RF 2.4GHz
Output: multi-channel (depending on the mode)
Control range: 0-100%

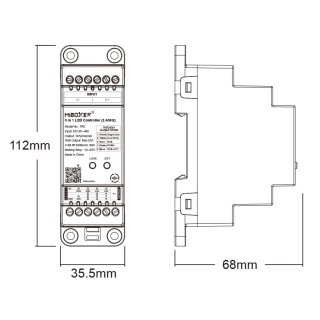

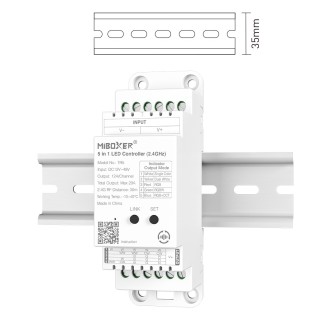

Mounting: 35mm DIN rail
Application: RGB / RGBW / RGB+CCT LED strips
System functions:
Auto-forwarding - signal forwarding between Controllers
Automatic synchronization of dynamic modes
DND mode - energy saving
Stable operation in multi-zone installations
