2m Silver Anodized Aluminum LED Profile with Shade
Features and Applications of the 16.1 x 6.05 mm LED Profile
This 2-meter aluminum profile for LED strips is a specialized structural element designed for efficient heat dissipation from LEDs and aesthetically pleasing lighting systems. Made of high-quality anodized aluminum, it exhibits increased resistance to oxidation and mechanical damage.

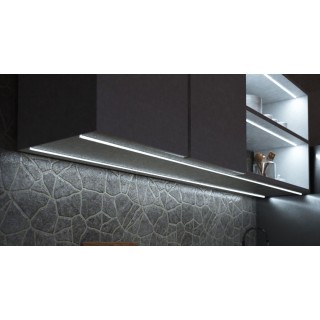

The low profile (total height of 6.05 mm) makes it ideal for surface mounting in confined spaces, such as the underside of kitchen cabinets, furniture recesses, or decorative moldings.
Advantages of an Anodized Aluminum Coating
Using an anodized aluminum profile offers tangible technical benefits:
Heat Radiation: Aluminum acts as a passive heat sink, absorbing heat from the LED strip, preventing LED burnout and extending its lifespan.
Anti-corrosion protection: An anode layer permanently protects the metal from moisture and external factors.
Mechanical installation: The profile structure ensures a stable fit of the push-in cover, which protects the light source from dust (IP protection rating depends on the sealing of the terminals).

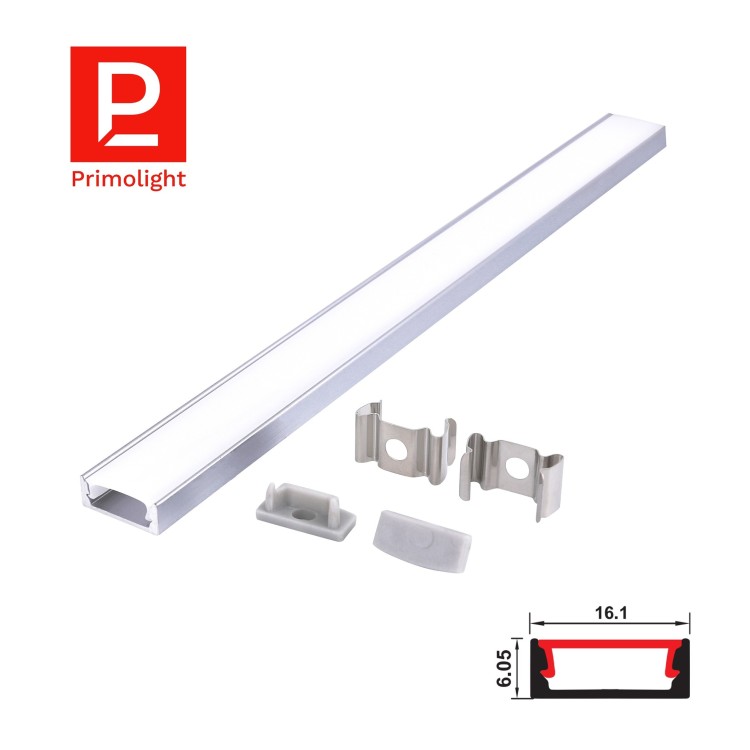

Key technical parameters (Dimensions):
Precise profile dimensions allow for the seamless fit of standard LED components:
External width: 16.1 mm
Internal width (strip space): 12.42 mm – compatible with 8 mm, 10 mm, and 12 mm wide LED strips.
Total height: 6.05 mm
Base wall thickness: 0.9 mm
Section length: 2000 mm (2 m)
Complete Installation Kit
To ensure seamless installation, the profile is offered with a full range of accessories:
PC Cover (2m): Transparent cover with high light transmission.
Mounting Clips (2 pcs.): Steel or plastic clips enable click-on installation of the profile without the need to drill through the aluminum.
Dedicated Screws (2 pcs.): Ensure stable attachment of the clips to the substrate (wood, furniture board, plasterboard).
Side Caps (2 pcs.): Made of plastic, they close the profile, preventing dirt from entering the interior and concealing the tape ends.
PML00001S
