2m Anodized Silver LED Corner Profile 18x18mm + Frosted Cover SET
Features of the 2m Aluminum Corner Profile – PrimoLight

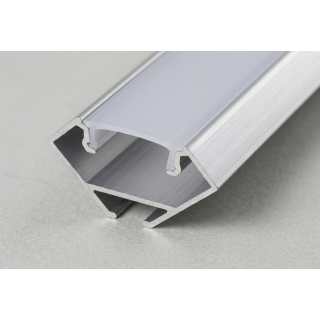

The PrimoLight aluminum corner profile is a specialized mounting element designed for installation in areas where surfaces meet at a right angle (90°). The profile's design allows for a 45-degree beam angle, allowing for precise light direction and avoiding glare.
The anodized aluminum construction guarantees excellent aesthetics and high resistance to oxidation and scratching. This is a key solution for those seeking a durable and effective solution for decorative and task lighting.

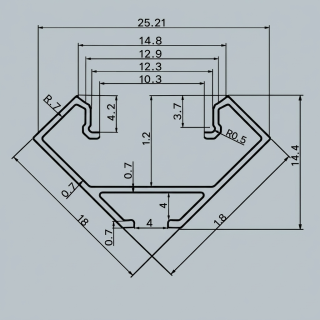

Technical data and dimensions (as per technical drawing):
Precise dimensions allow for a perfect fit in furniture and wall corners:
External arm dimensions: 18 mm x 18 mm
Total width (front): 25.21 mm
Internal width for LED strip: 10.3 mm (suitable for strips up to 10 mm wide)
Total profile height: 14.4 mm
Section length: 2000 mm (2 meters)
Material: Anodized aluminum
Color: Matte silver
Advantages and Functionality of the Corner Profile
Optimal Beam Angle: Thanks to its 45° design, light is directed precisely onto the worktop or illuminated surface, making it an ideal choice for kitchens and display cases.
Excellent Heat Dissipation: The aluminum body acts as a heat sink, dissipating heat energy from the LED strip, significantly extending the diodes' lifespan and preventing premature burnout.
Flat Opal Diffuser (2m): The included polycarbonate diffuser effectively diffuses light, creating a soft glow and masking the LED strip's light points.
Cable Compartment: A special design under the strip shelf (free space inside the corner) allows for neat routing of power cables inside the profile.

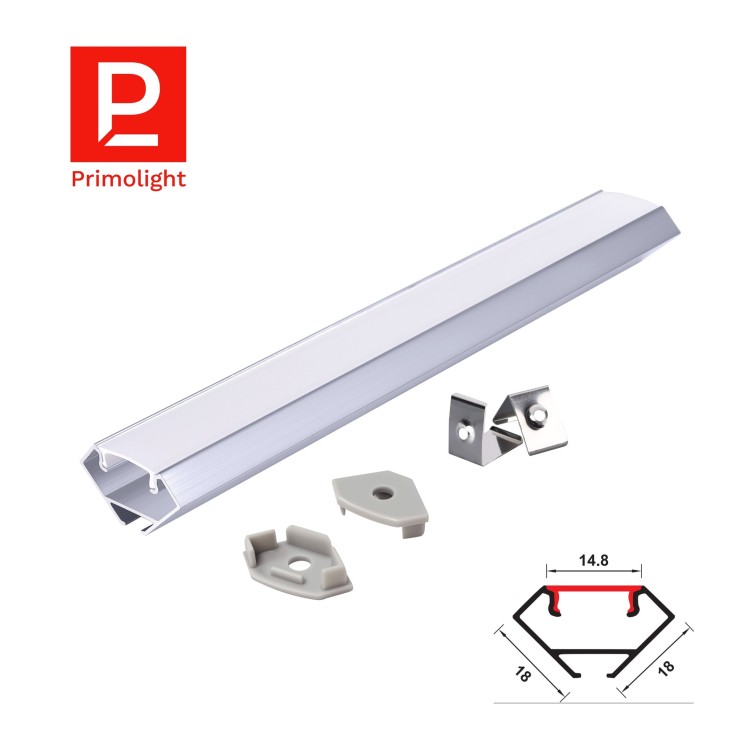

Complete Installation Kit Contents:
By choosing this kit, you receive all the components necessary for professional installation:
1x Anodized Corner Profile (2m): Rigid and durable lighting base.
1x Flat opal diffuser (2m): Protects the strip and provides aesthetic light dispersion.
2x Mounting clips: Dedicated clips for quick profile attachment.
2x Mounting screws: Matched to the clips, ensuring structural stability.
2x Side caps (end caps): Made of durable plastic, they aesthetically close the profile and protect the interior from dust.
Applications:

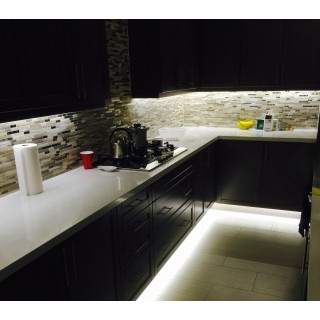

Under-cabinet lighting in the kitchen: Installed where the cabinet meets the wall.
Display cabinets and shop windows: Directing light onto displayed goods.
Wardrobes and closets: Interior lighting mounted in a corner.
Ceiling and architectural recesses: Creating an atmospheric glow in living rooms.
PML00005S
