Recessed LED Profile, 2m, Black, Anodized, 13x9mm + Frosted Cover SET
Features of the 2m Recessed Aluminum Profile – PrimoLight

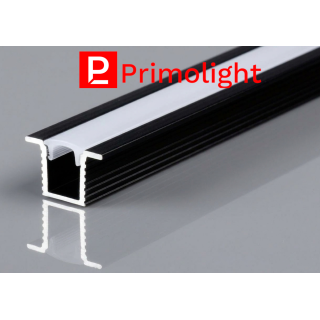

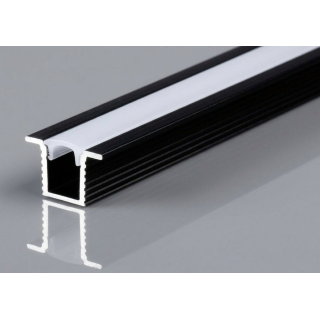

The PrimoLight recessed aluminum profile with external dimensions of 12.8mm x 9mm is an advanced "High Slim" solution. Thanks to its unique height (9mm) and the inclusion of a cover flange, this profile allows for elegant integration of LED lighting into surfaces with limited width, while providing better light dispersion than standard, shallow profiles.
The anodized aluminum construction ensures high structural rigidity, corrosion protection, and optimal thermal conditions for the LED strips, which directly translates into years of trouble-free operation.

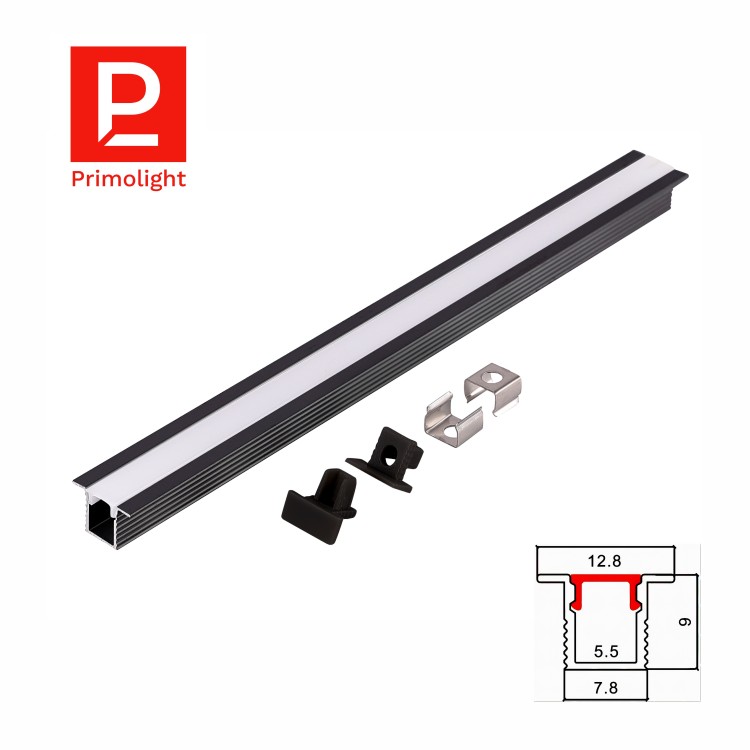

Technical data and dimensions (as per drawing):
Precise parameters for milling and installation:
Total width (with flange): 12.8 mm
Groove width (for hole): 7.8 mm
Total height: 9 mm
Internal width (for strip): 5.5 mm (designed for narrow LED strips)
Profile length: 2000 mm (2 meters)
Material: Anodized aluminum
Color: Matte black
Advantages and Unique Features of the High Slim Profile
Discreet Collar (wings): Effectively conceals any imperfections in the edges of the milled hole, ensuring a perfect finish where the aluminum meets the furniture board or wall.
Deep Design: A height of 9 mm allows the LED strip to be positioned lower in relation to the shade. This makes it easier to achieve a uniform line of light without visible light points (diodes) when using a frosted shade.
Narrow Line of Light: The 5.5 mm internal width allows for the installation of modern, narrow LED strips, creating minimalist and modern lighting accents.
Rubberized Side Structure: The outer walls have special notches that increase grip during adhesive installation in milled channels.
Complete Installation Kit Contents:
The kit is configured to allow for the complete installation of a 2-meter section:
1x High Recessed Profile (2m): Basic construction element.
1x Opal Shade (2m): Protects the LEDs and perfectly disperses light.
2x Mounting Clips: Optional brackets for easy profile installation.
2x Mounting Screws: Designed for securely attaching the brackets.
2x Plastic End Caps: Side trims that seal the profile and protect it from dust.
Applications:

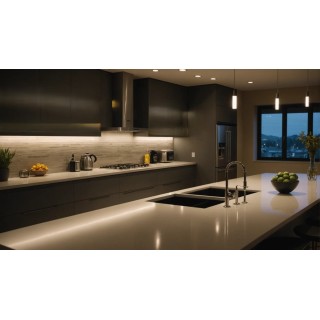

Modern furniture: Thin furniture boards, wardrobe and kitchen cabinet fronts.
Interior design: Decorative lighting lines in wall panels and plasterboards.
Advertising industry: Illuminating details in display cases and showcases.
Stair lighting: Installation in steps (milled).
PML00010B
